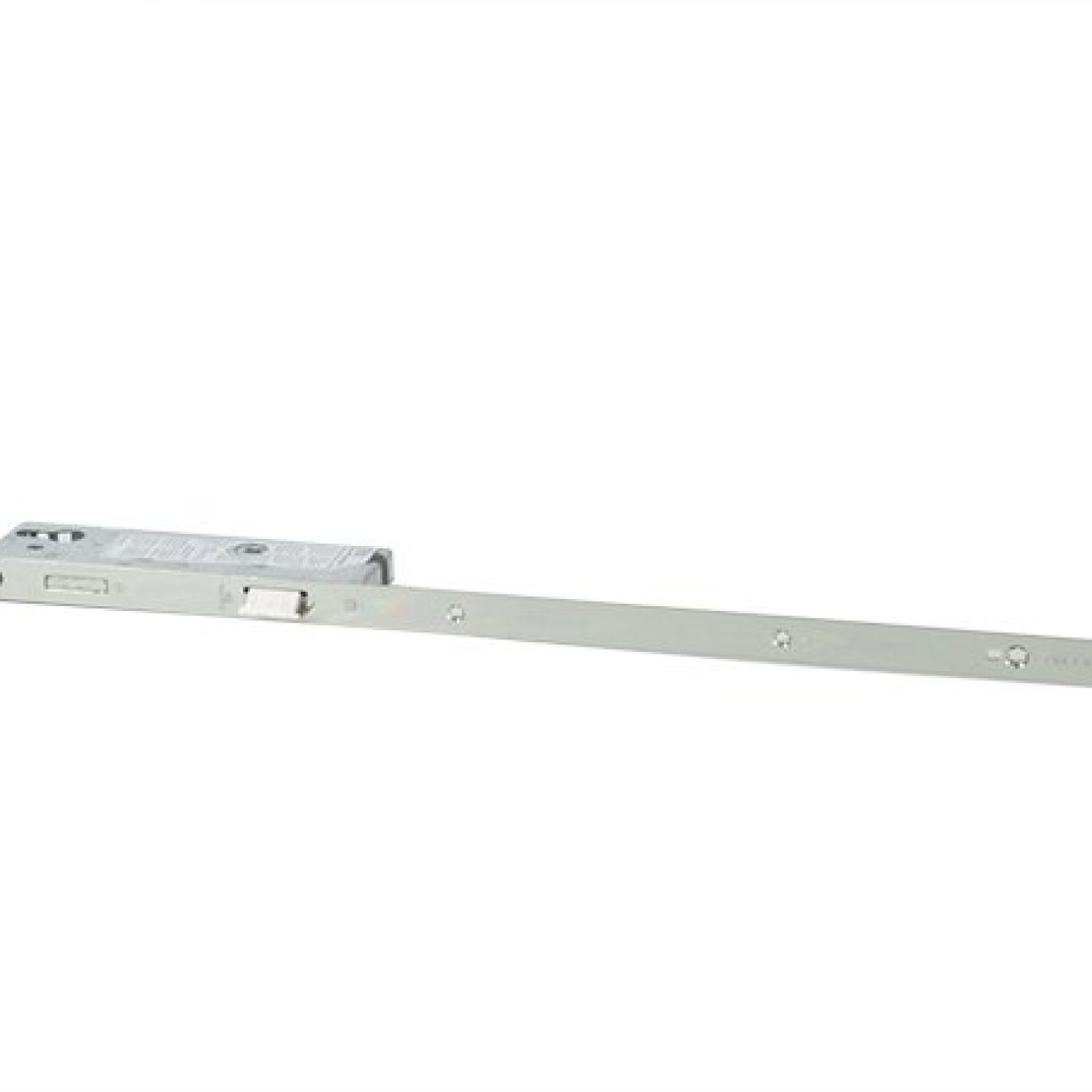

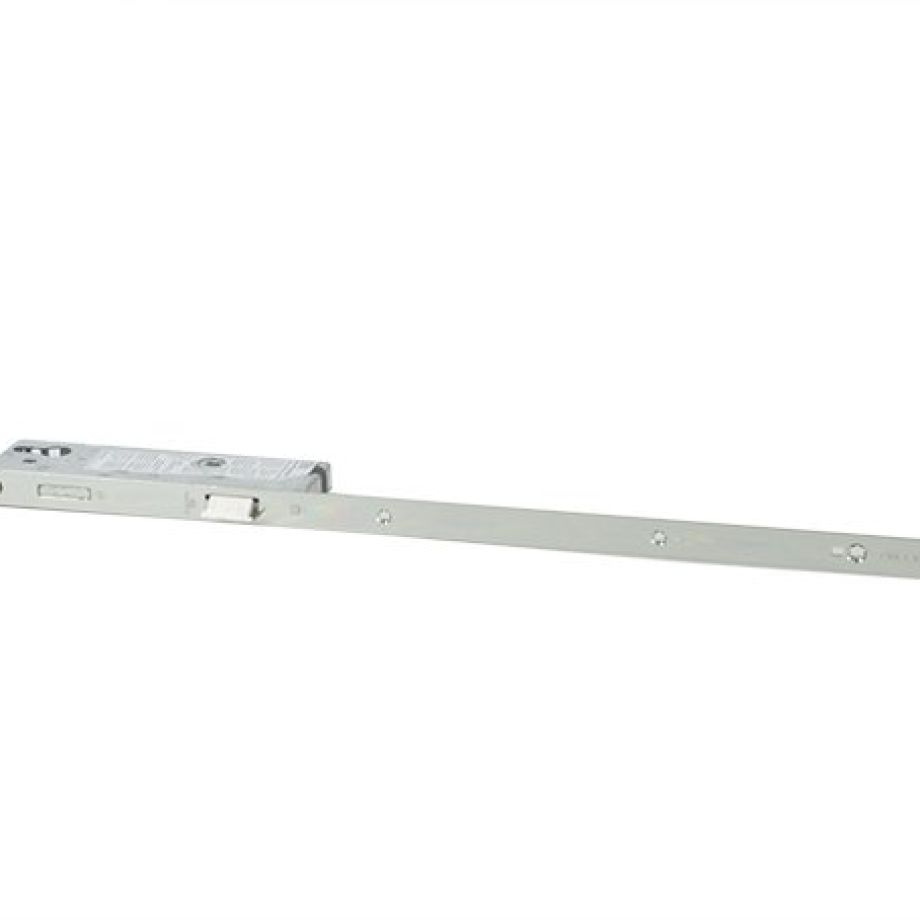

BZP Winkhaus 2.1m Square Ends Thunderbolt Espag Lock 45mm BS

Product Code: 93222

For use with our 92mm centre espagnolette locking handle sets. Solid twin deadbolts in the upper and lower positions. 50% greater fitting tolerances compared to conventional hook locking systems. Suitable for shorter doors, min/max door height: 1625mm/2105mm Please note 1 x euro cylinder needs to be purchased separately. BZP, or 'Bright Zinc Plated', products are made from steel and plated with a thin layer of zinc using an electric current, to protect against rusting and oxidisation.

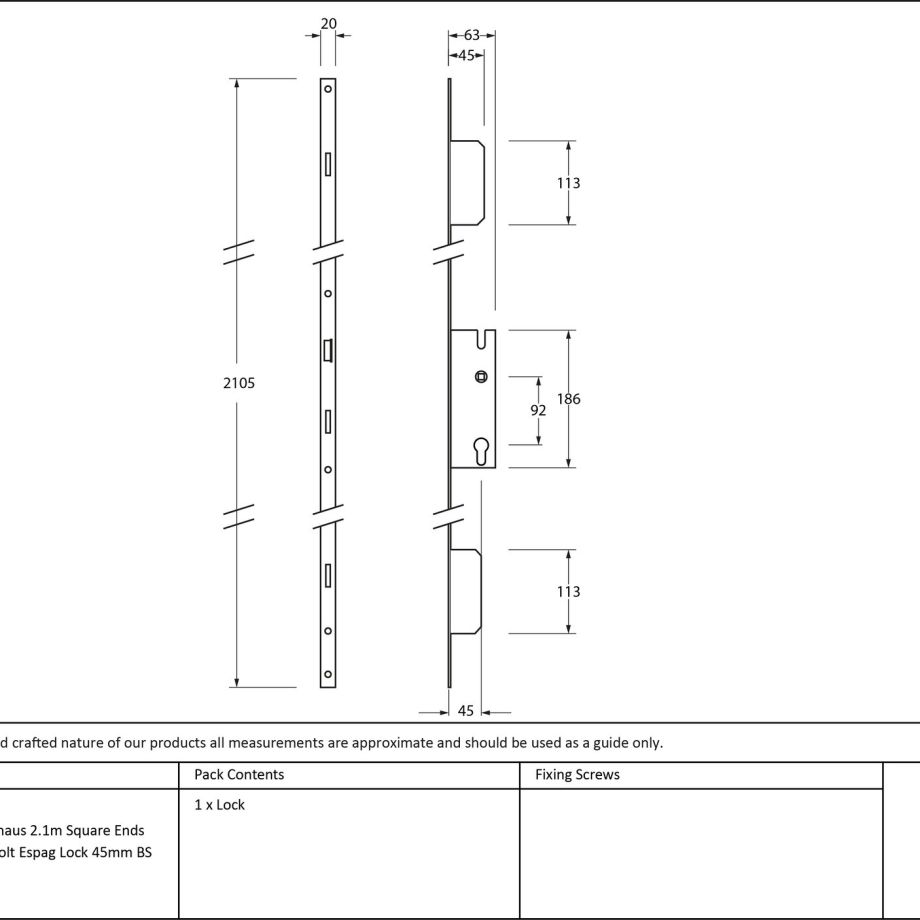

Overall Height: 2105mm
Centre Case Size: 63mm (D) x 186mm (H) x 15mm (T)
Deadbolt Lock Box Size: 45mm (D) x 113mm (H) x 15mm (T)
Backset: 45mm
Min/Max Door Height: 1925mm - 2105mm
