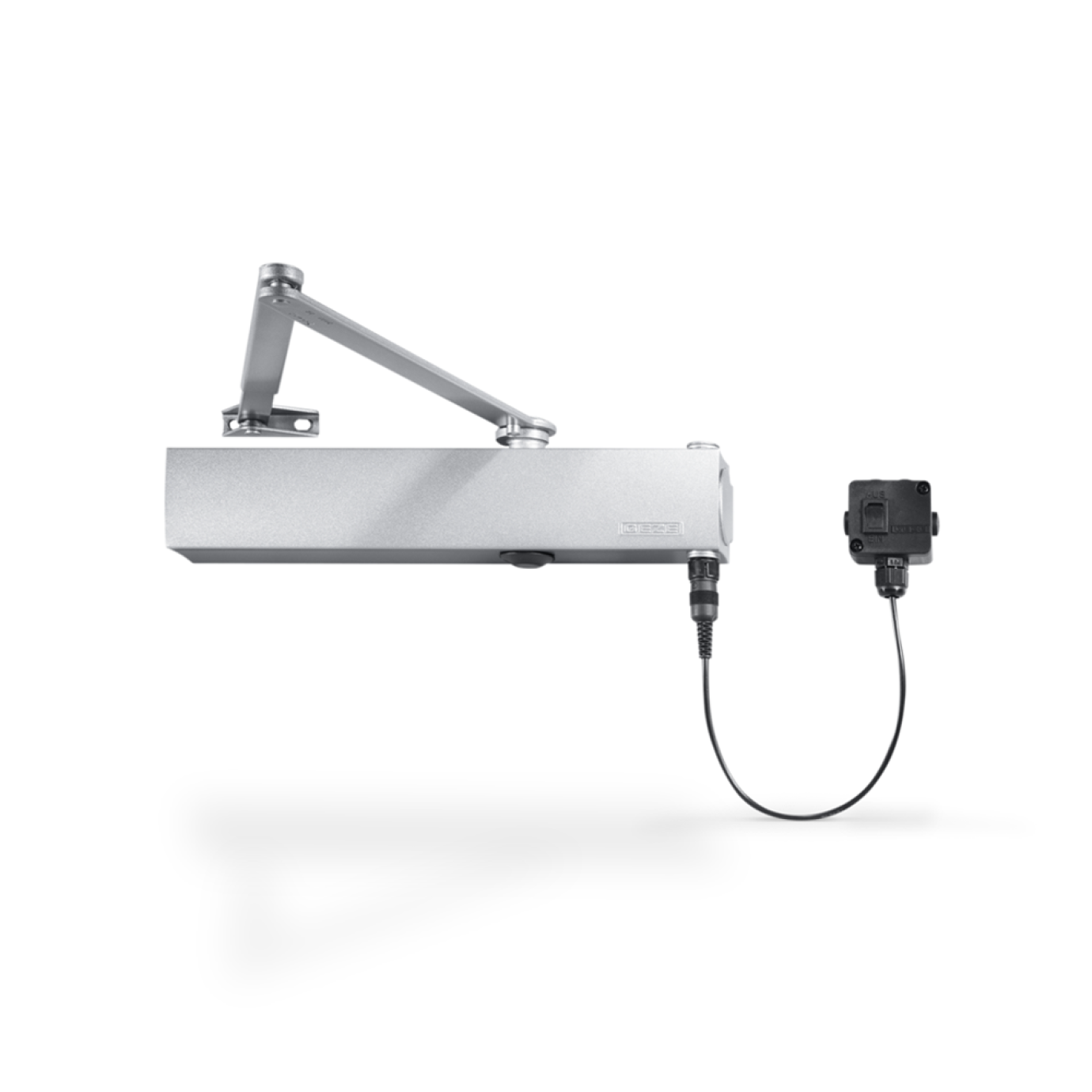

Geze TS4000EFS Electromagnetic Swing Free Door Closer EN 1-6

The Geze TS4000EFS Electromagnetic Swing Free Overhead Door Closer with link arm for single leaf doors of up to 1400 mm leaf width with electric free swing function

Product Features

• Closing force EN1-6 with variable adjustment
• Operating voltage 24 V DC
• Can be used for right and left hand doors without conversion
• Free swing function makes it possible to pass through the door with little physical force required
• Free swing function once the door has been opened once to approx. 90°
• Smoke switch control unit can be connected, whose signal makes the door close automatically in the event of a fire

• Mechanical latching action which accelerates the door shortly before the closed position
• Closing speed can be individually adjusted
• Visual closing force display for easy control of the setting
• All functions can be set from the front (except for latching action)

Areas of Application

• Fire and smoke protection doors
• Right and left single-action doors
• Single-action doors up to 1400 mm leaf width
• Door leaf installation hinge side and transom installation opposite hinge side (different variants)
• Hold-open systems with integrated hold-open function with free swing
• Barrier-free access in accordance with DIN 18040
